RS Series Cord Spool
This cord spool features a waterproof construction and does not flood even with prolonged use during heavy rain.
This spool includes a current collection mechanism that uses a slip ring method developed by our company, enabling measurements to be taken while the cord is reeled in.
|Model||Model RS-11||Model RS-21|
|Compatible models||Frame type|
|Dimensions (mm)||420 × 260 × 400||470 × 570 × 850|
|Material||Made of aluminum|
|Wound cord length||φ 5 × 300 m / φ 6 × 170 m / φ 8 × 140 m||φ 6 × 550 m / φ 8 × 310 m / φ 9 × 240 m / φ 10 × 190 m|
|Compatible models||ET-50X / ET-72X / FNX-80 / EST-3X / STC-2X||ET-72X / FNX-80 / EST-3X / STC-2X|
|Notes||-||Includes guide pulley Includes stopper mechanism|
* Depending on the spool model, some models cannot be used. Please contact us in advance.
* The storage case that is listed in the standard specifications is not included in cases in which the probe is attached to the spool. [Model FNX-80]

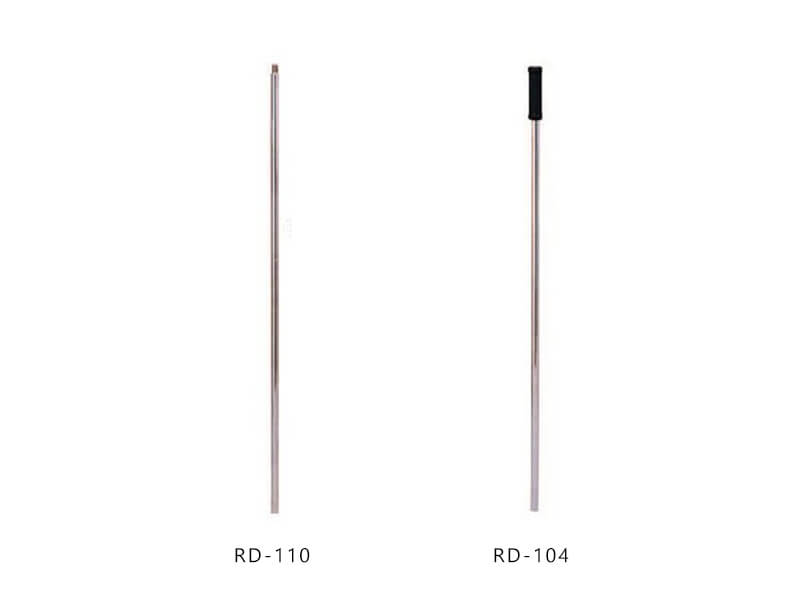

RD Series Rods for Current Meters
Velocity flow meter rods are used for fixing the probe when our velocity flow meters are used in rivers or waterways, etc.
|Model||Model RD-100||Model RD-110||Model RD-104|
|Compatible models||TK-106X||CMT-10 series, CMS-11 series|
|Dimensions||φ 12 × 1 m|
|Notes||One Model RD-100 rod is included by standard with TK-106X.||This is an extension rod that can be connected to Model RD-104 (no glip)||Model RD-104 is included by standard with the CMT-10 series and CMS-11 series.|
For CMT-10 Series Suspension Bracket Set
This is a suspension bracket set for the CMT-10 series.
This device is used while taking measurements in deep underwater locations (in cases in which the rod cannot be used because the depth is greater than the rod length)
This three-piece set includes a 21m suspension rope, a bracket for the rope, and a shackle.
|Model||Suspension bracket set|
|Compatible models||CMT-10 series|
