Model CM-1AX

Electric Current Meter

Model CM-1AX Electric Current Meter

This device is for measuring flow velocities of general rivers and water channels.
This product improves upon the Model CM-1A electric velocity flow meter, which has been a favorite among our customers for many years.

Features

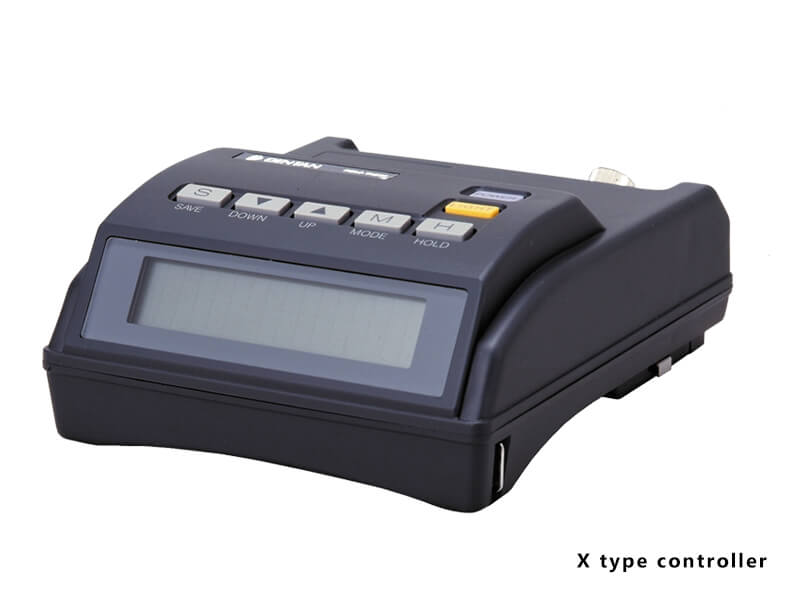

Controller | Model CM-1AX Electric Current Meter

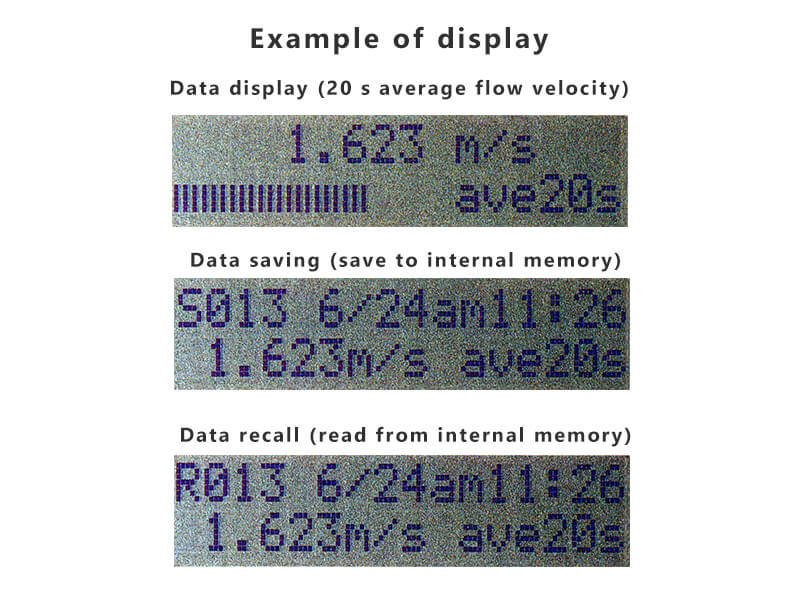

Example of display | Model CM-1AX Electric Current Meter
  • Portable
  • Plastic molded propeller
  • Direct reading type
  • Internal memory function
  • Water drop proof construction
  • Large and easy-to-read LCD display

* Please specify whether the device is to be used in seawater.

Measurement Range

0.10~6.00m/s

※ Includes Japanese official test result certificate

Velocity flow rate averaging time

Select from the following four settings: 2, 20, 40, and 60 s

Memory Function

MAX 10,000 data points (timestamp + measurement data)

Power Supply

Four C size dry cell batteries or DC 12 V (option)

Battery Life

24 hours with continuous use

Specifications

Dimensions/Weight

Dimensions (mm) Weight (kg) Notes
Probe φ 114 (propeller protection ring diameter) × 420 5.0 -
Cabtire cable φ 6 × 20 m (standard) 1.2 Tensile strength over 60 kg
Suspension rope φ 5 × 20 m (standard) 0.2 Tensile strength over 100kg
Controller 80 × 154 × 190 0.95 Including batteries
Storage case 350 × 470 × 180 4.4 Made with duralumin frame

Option

  • Plumb bob (Model CW-3)
  • External output (0 - 1 V, RS-232C, USB2.0 standard, etc.)
